Pride recone module Pride Ruby 6.5 performance

available
$ 35.00
+ Free Shipping to 48 States
Quantity
- +
Free 30-day returns
Fast Free Shipment
1 year warranty
Visa/MasterCard/PayPall payment

Pride recone module Pride Ruby 6.5 performance

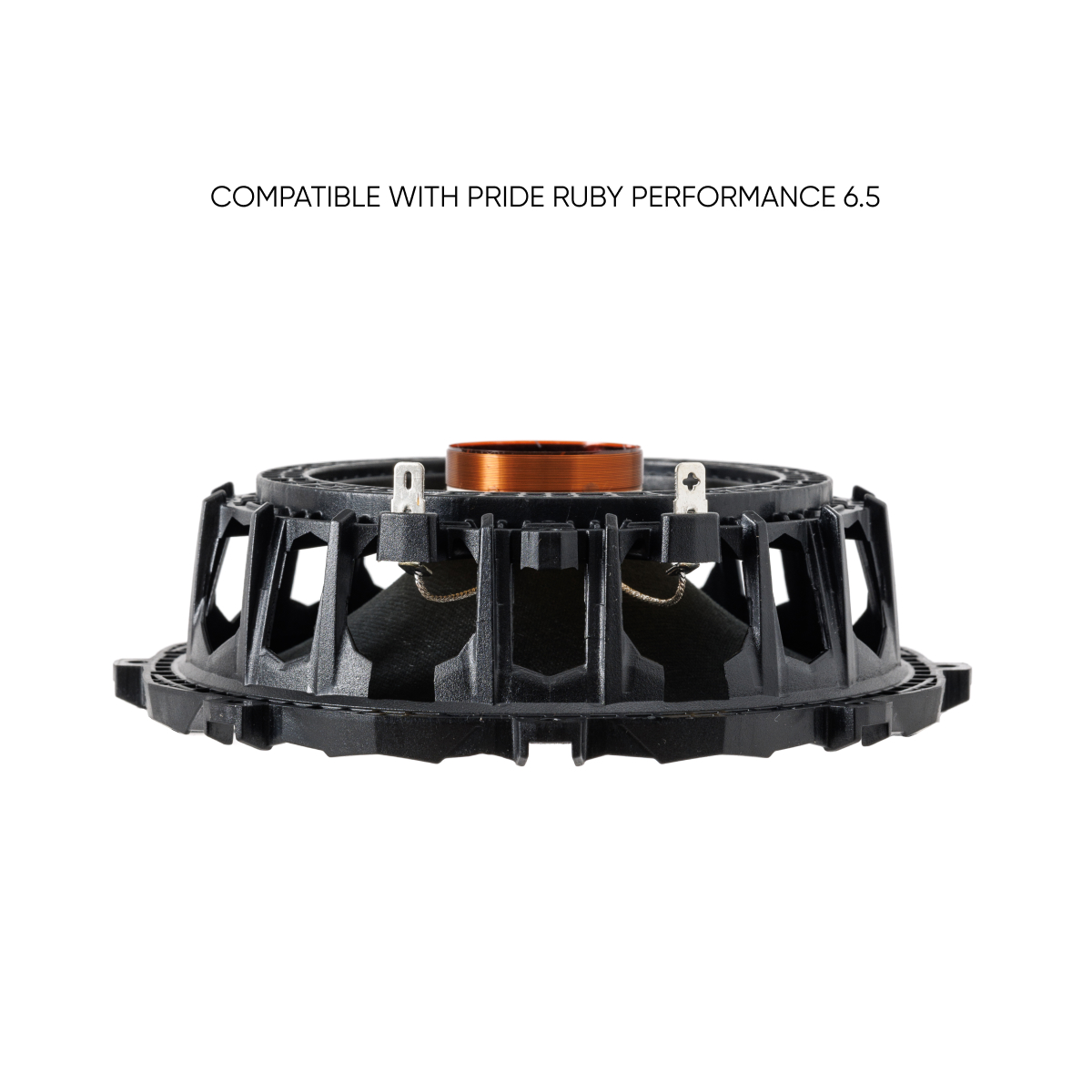

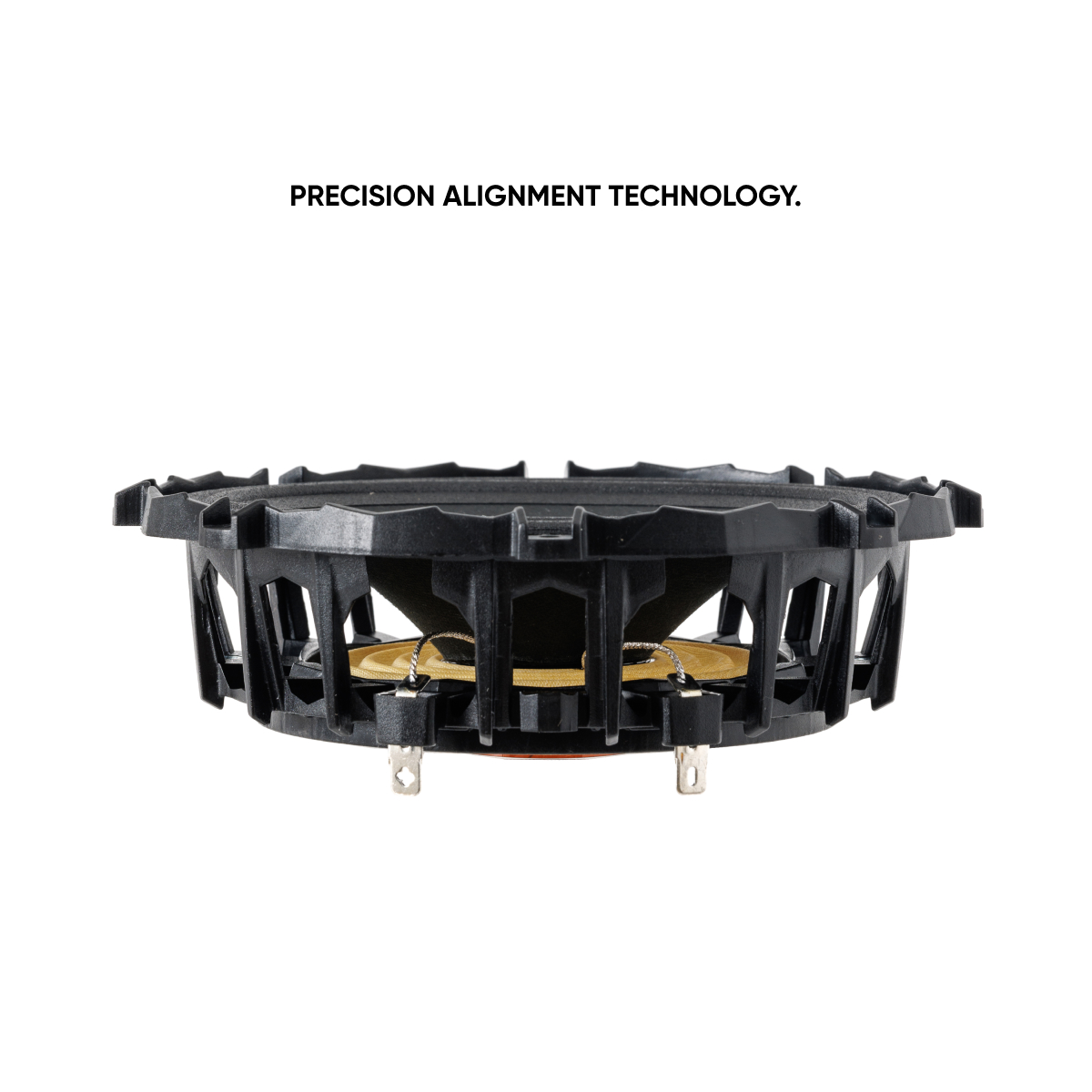

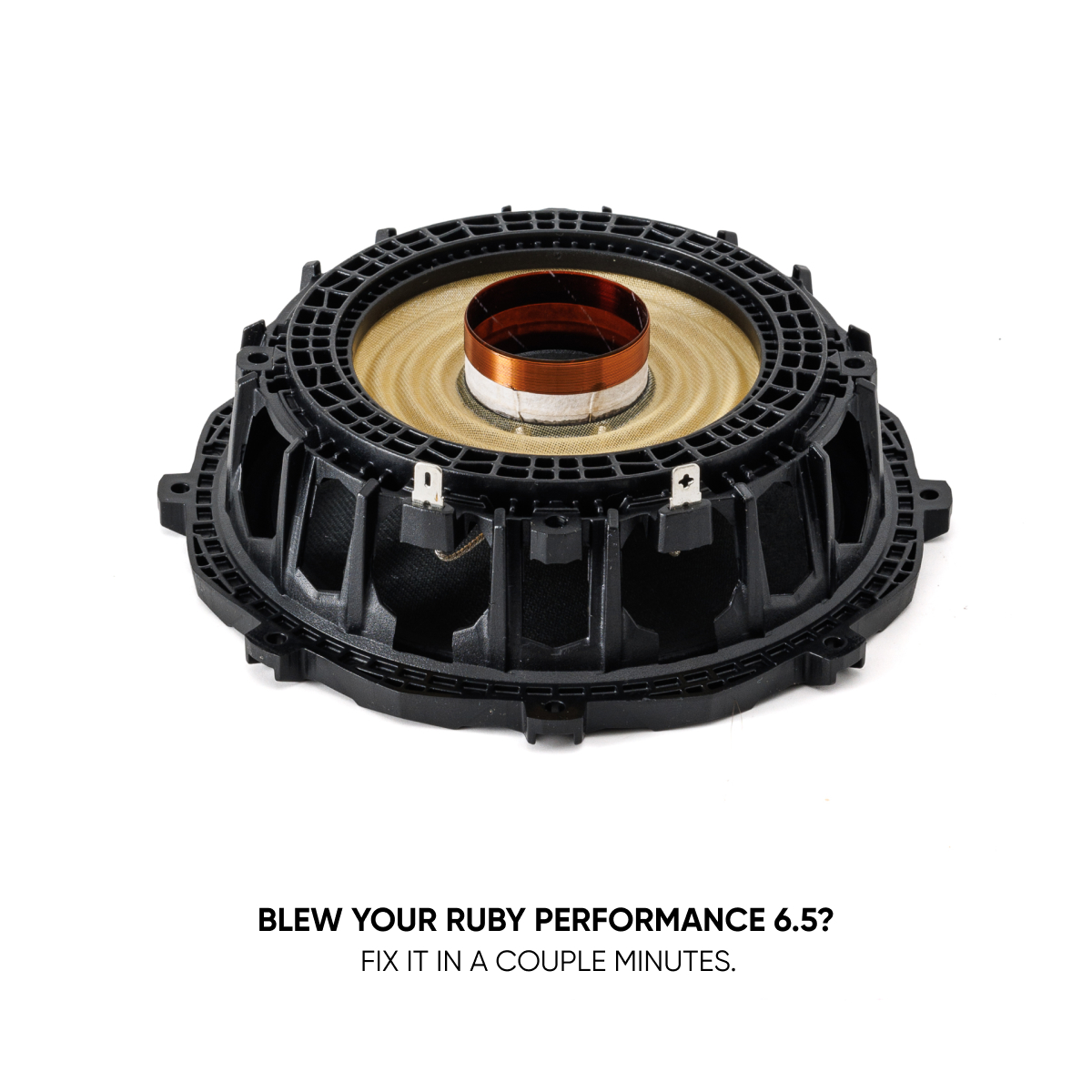

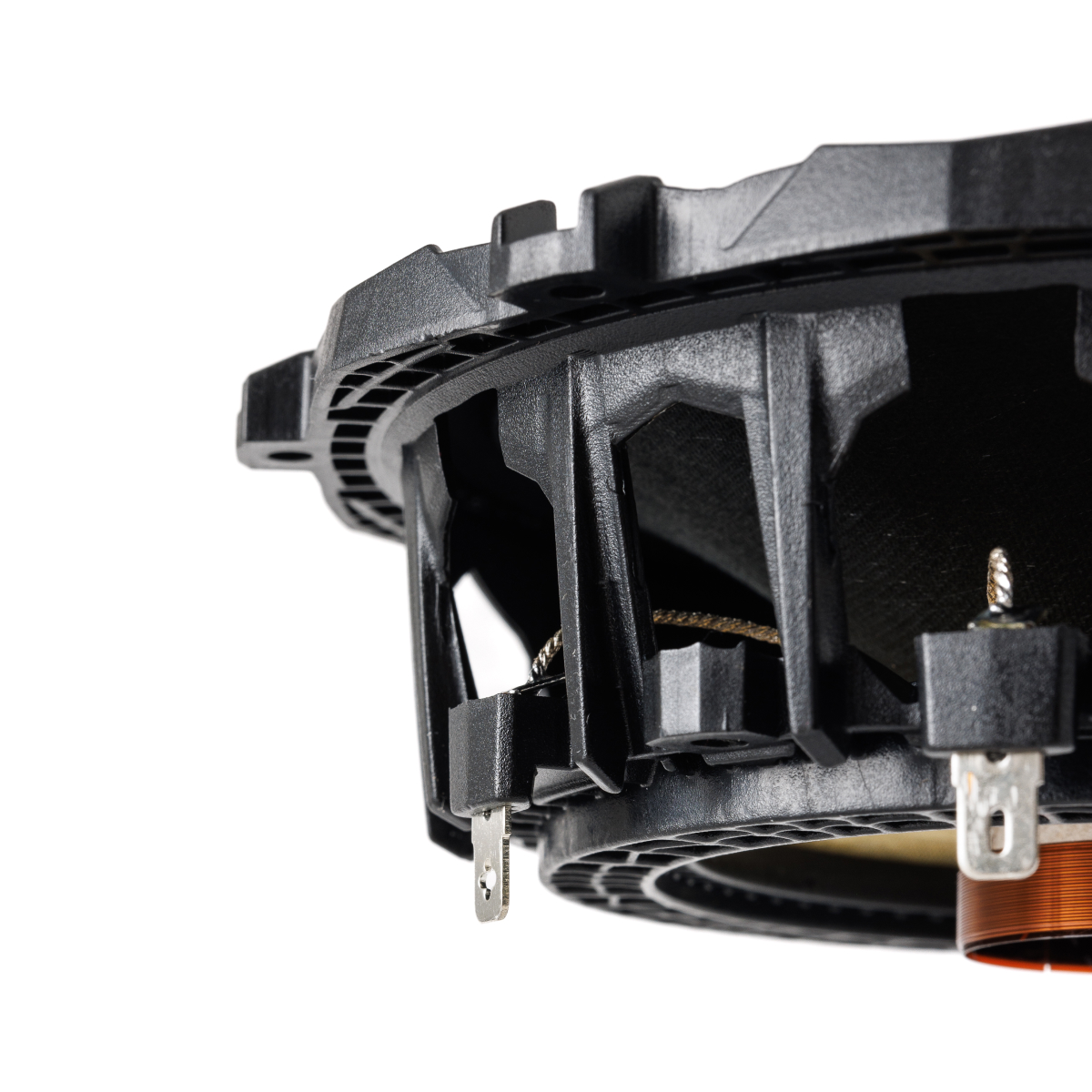

Replacement module for the Pride Ruby 6.5 performance. Pride Ruby 6.5 performance moving part module allows you to easily replace or repair the speaker. The Pride Ruby 6.5 performance module includes all the elements of the moving speaker system, which are assembled together on a single polymer frame. The module contains those elements that most often fail due to electrical overloads and mechanical damage. In the event of a breakdown of the voice coil and the supply wires from it, the centering washer, diffuser or suspension, the entire moving system is replaced as a whole. Using the Pride Ruby 6.5 performance module, speaker repair is quick and easy.

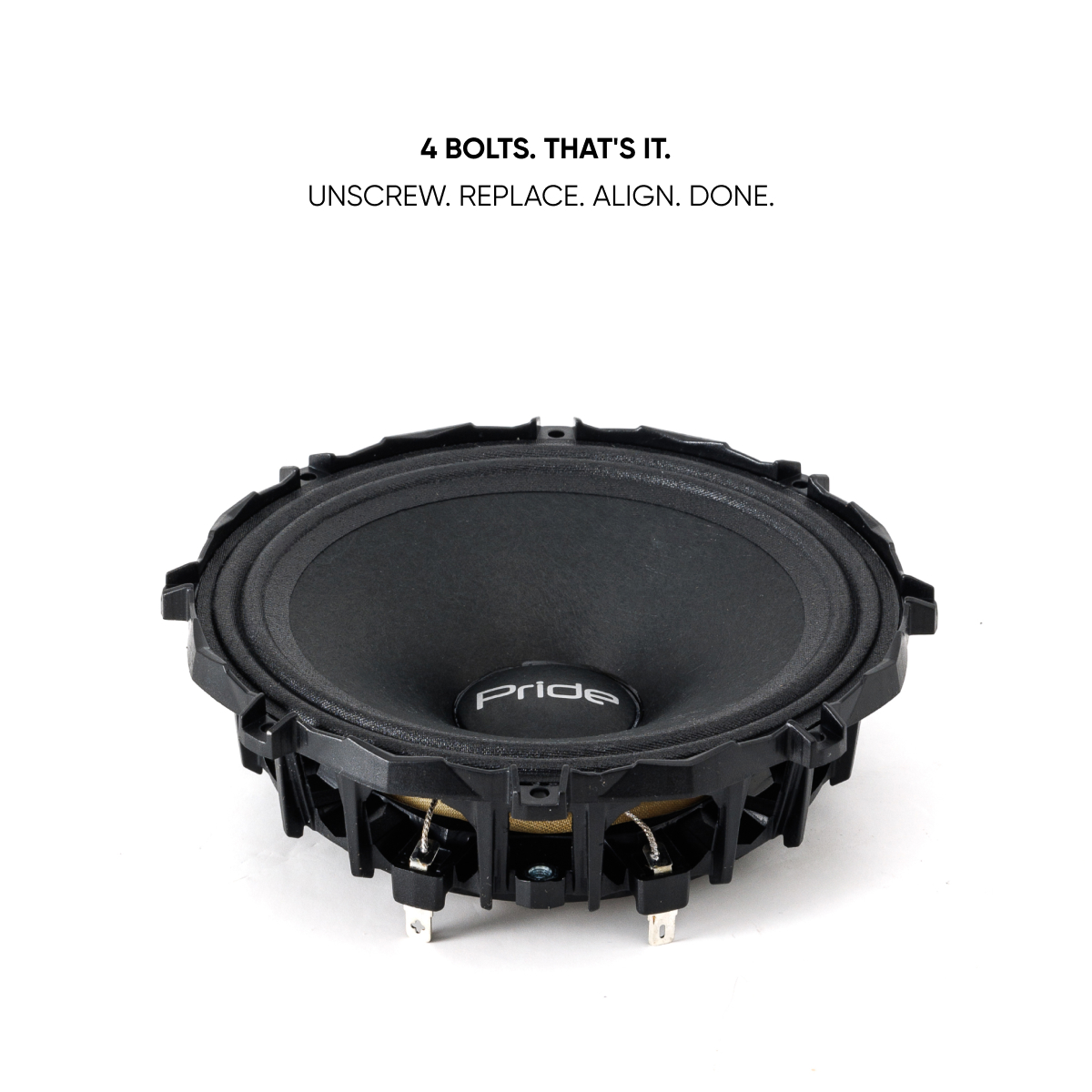

Sequence of changing the Pride Ruby 6.5 performance repair kit:

  1. Unscrew the old, failed module.
  2. Clean the gap from the remains of the burnt coil, if they are present in the gap. After removing the residue, you need to blow out the gap or clean the gap with rolled up adhesive tape. If the gap is not properly cleaned, voice coil residue may interfere with the correct operation of the speaker or damage the new voice coil.
  3. Carefully install the module. It is important to understand that the voice coil does not have much rigidity under radial loads and any external impact on it can lead to deformation.
  4. Tighten the screws. Do not tighten them with too much force.



It is important to note that if you install the module yourself (not from an official representative), we cannot control the correctness of actions when replacing it, which means we cannot be responsible for the correctness of its subsequent operation and no warranty is provided for this product.

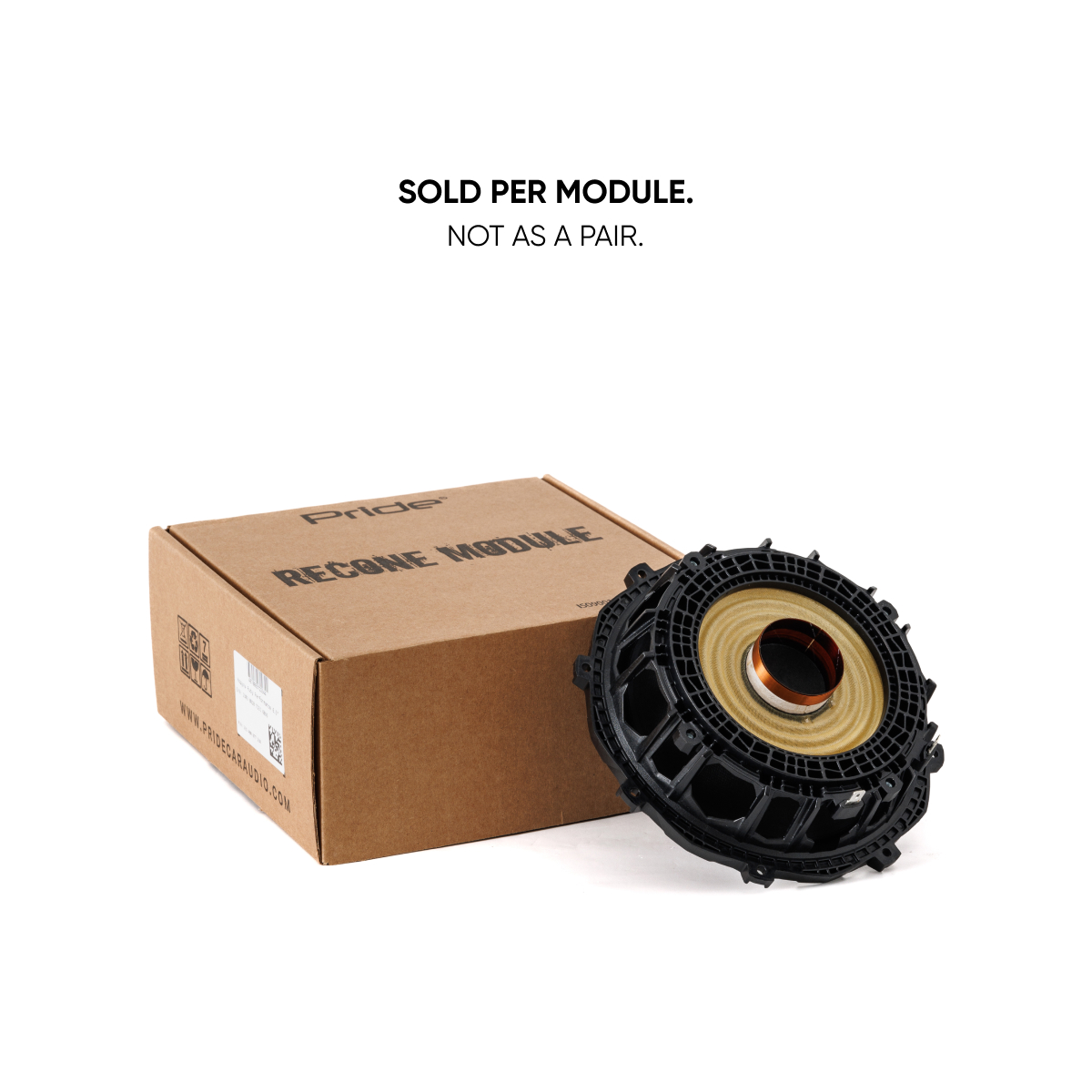

The price is for 1 piece

Part number: MODULE-RP.65
