Subwoofer Pride M16.12

Clear

The online store does not work in Your country. Wait for news.
Please contact your dealer for purchase.


Find your dealer

New series – M.

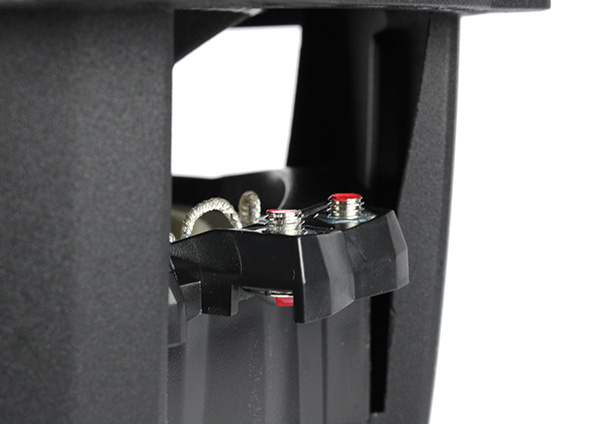

Modular subwoofer for simpler and easier repairs. Now repairs can be done in a matter of minutes.

The subwoofer has an honest RMS – 1600 watts, as well as even better efficiency than previous models.
Voice coil – 3,2″ round copper

General feature
Power Handling (RMS) 1600 W
VC material/ diameter 3,2" round copper
VC wire insulation Polyimide
Frame material Aluminum
Magnet size 2 x 190*25 mm
Spider diameter, mm 230 mm
Cone material Paper with glass fiber
Dust cap material Hi-temp ABS
Parameters
DC Resistance (Re) 0,4 Ω
Free Air Resonance (Fs) Hz 29,6
Total Speaker “Q” (Qts) 0,54
Equivalent Compliance (Vas) L 28,6
One-Way Linear Excursion (Xmax) (BL 50%) mm 21
Sensitivity (1 W / 1 m) dB 83,4
Effective Piston Area (Sd) cm² 530
Physical Specifications
Overall Diameter, mm 325
Mounting Hole Diameter, mm 307,5
Mounting Depth, mm 188
Driver Displacement, L 4
Net Weight, kg 13.30

Drawing
pride_m16_12.jpg Download
